Product Category: Transmitters

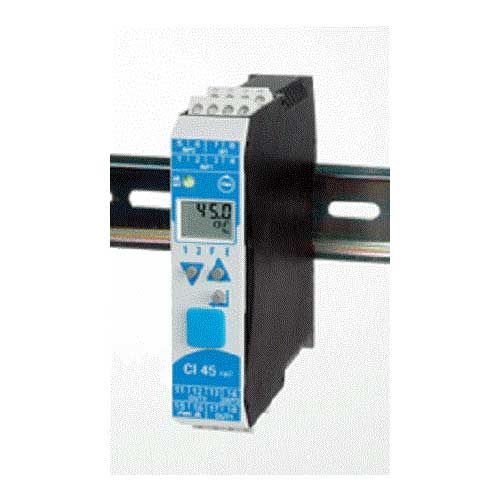

Dimensions and size: 99mm x 22.5mm x 117.5mm (HxWxD), Din-Rail Mounted
Primary Input Type: Thermocouple: B, E, J, K, L, N, R, S, T. PT100 : 2/3 wire. Linear: mV, mA, & VDC and Potentiometer
Other Inputs: 2nd Universal input, digital input (counter / frequency)
Output Function: Alarm, retransmit, counter end function
Output Type: Relay, 0/4 to 20mA, 0/1 to 5V, 0/2 to 10V. Logic, Pulse or Frequency
Max. Number of Outputs: 3
Power Supply: 100–240V AC, 18-30 V AC/DC
Communications: RS485 Modbus RTU, or Via adapter (ETH-Modbus TCP, PROFIBUS, CAN-Open)
Panel Sealing: IP20
Certifications: CE, UL
Other Functions: Up to 31 prog x 126 segment programmer (fixed memory of 351 bytes) Counter/ frequency input, Customer-specific linearization, Measurement value correction, Min/max indicator (‘slave pointer’)
Software Tools: BlueControl
